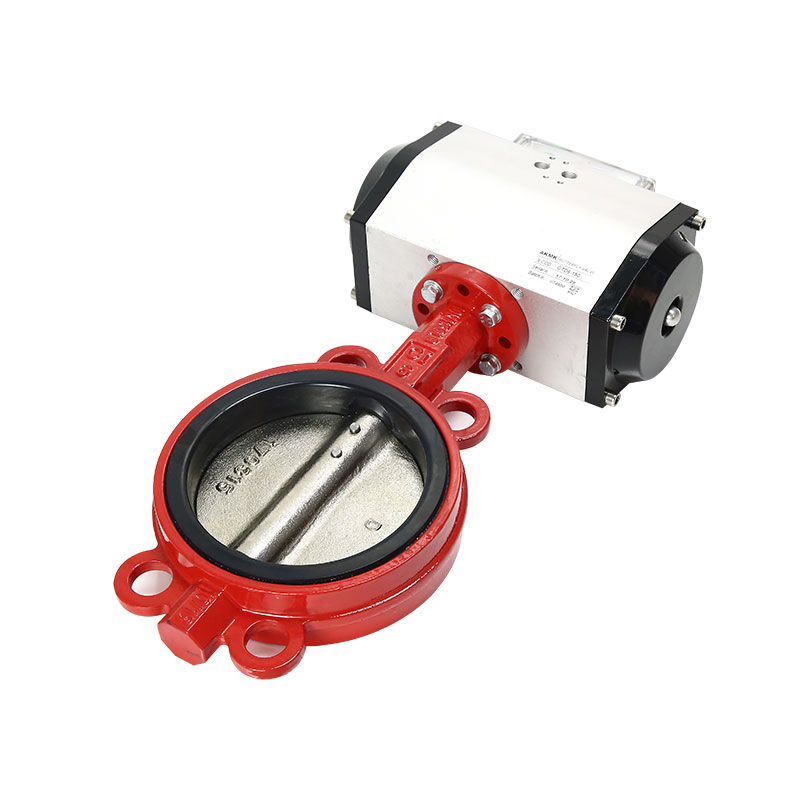

INTRODUCTION

GTD Butterfly Valves are the ideal solution for the interception of gravity-fed or pneumatically conveyed dry powders or granules in a variety of bulk solids handling and processing plants.



TECHNICAL SPECS

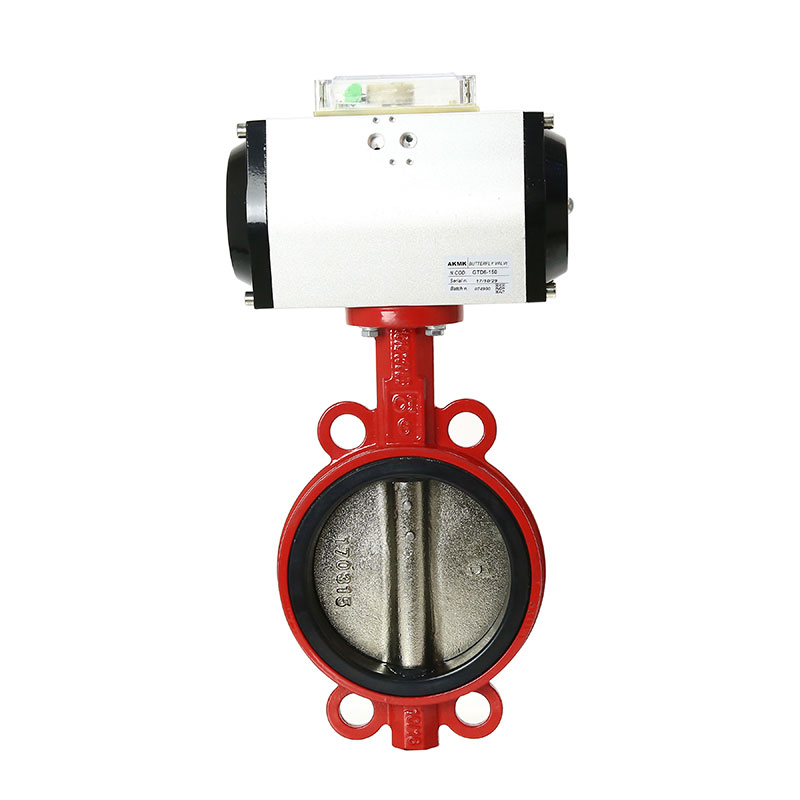

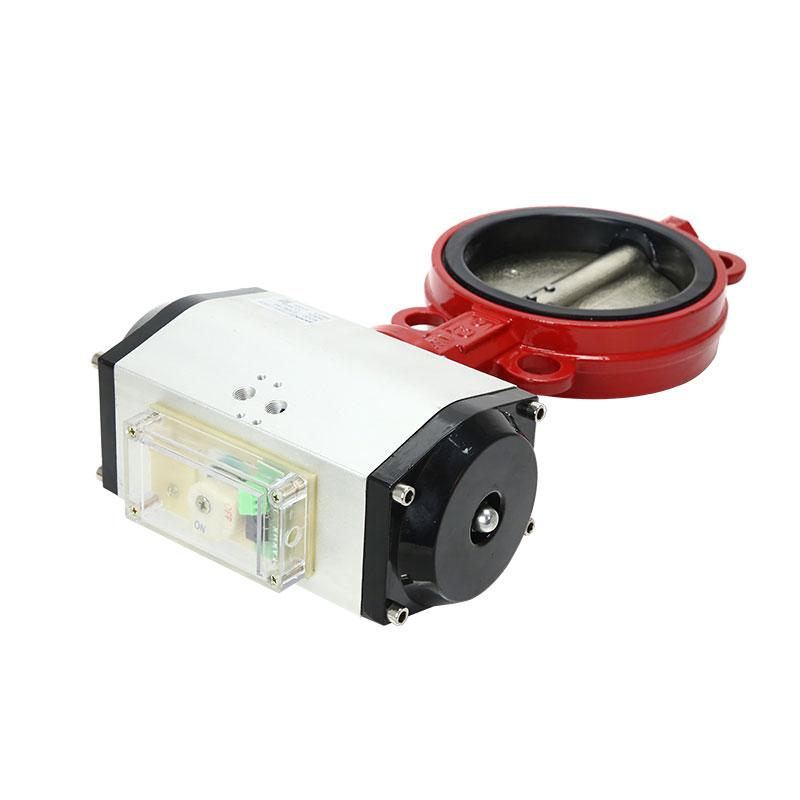

Description

GTD Butterfly Valves consist of a single block body manufactured from die-cast , a carbon steel or stainless steel disc including shafts, and an elastomer seal. An adjusting lever or pneumatic or electric actuator can be applied to the valve. The three type actuators are perfectly interchangeable. Interchangeability of the drive shaft (standard:  ISO 5211; option:DIN 5482) and universal connection to different size flanges results in variety of configurations.



Function

GTD Butterfly Valves are used in virtually all types of bulk solids processing plants where interception of gravity-fed or pneumatically conveyed dry powders or granules is required. This type of valve is particularly suitable for pneumatic conveying operations, in both dilute and dense phase applications, provided the operating pressure does not exceed 10 bar (145PSI). Due to its particular design features and the materials used, the VW Butterfly Valve represents the ideal solution in many cases, both from a technical and an economic point of view.



Features

Ø = DIN 100 ~ DIN 400

Gauge: EN 558 Series 20; ISO 5752; API 609

Coupling flanges: DIN 2501 PN 2.5 / 6 / 10 / 16; ANSI B 16.5, class 150

Coupling flange surface design: DIN 2526, form A

Actuator coupling flange: EN ISO 5211 or DIN 5482

Valve identification: DIN EN 19

Leak test: EN 12 266-1, EN 12 266-2, A grade

Operating temperature: -20 °C ~ 90 °C (-4 °F ~ 194 °F)

Differential pressure: max. 10 bar (145PSI)

Operating pressure: max.10 bar (145PSI))



Benefits

Few components

Interchangeable discs

Replaceable gasket

Highly abrasion-resistant

Easy to fit

Quick maintenance

Ex-stock delivery


Model

Size (mm)

Actuator

Media Pressure

Media Temperature

GTD6--50-DA

50

DA50

Vacuum to 10 BAR

-10°C to 100°C

GTD6--65-DA

65

DA65

Vacuum to 10 BAR

-10°C to 100°C

GTD6--80-DA

80

DA75

Vacuum to 10 BAR

-10°C to 100°C

GTD6--100-DA

100

DA85

Vacuum to 10 BAR

-10°C to 100°C

GTD6--125-DA

125

DA92

Vacuum to 10 BAR

-10°C to 100°C

GTD6--150-DA

150

DA110

Vacuum to 10 BAR

-10°C to 100°C

GTD6--200-DA

200

DA125

Vacuum to 10 BAR

-10°C to 100°C

GTD6--250-DA

250

DA140

Vacuum to 10 BAR

-10°C to 100°C

GTD6--300-DA

300

DA160

Vacuum to 10 BAR

-10°C to 100°C


DIMENSIONS



DN

Actuator

A

B

F

H1

50

DA50

138

70

71

71.3

65

DA65

138

70

71

77.5

80

DA75

162

81

80.4

89.2

100

DA85

162

81

80.4

101.5

125

DA92

208

97

94.5

117.5

150

DA110

245

116

109

145

200

DA125

310

142

137

163.5

250

DA140

340

154

148

190.5

300

DA160

401

179

168.5

230

All dimensions in mm unless shown otherwise.

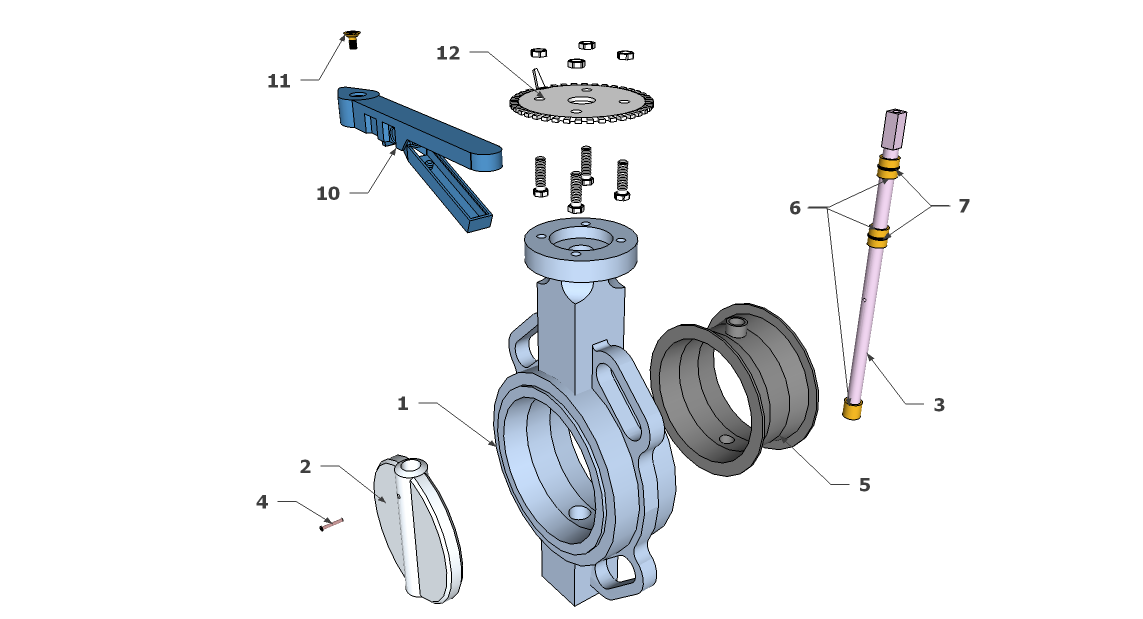

Number

Item

Material

1

Body

Fusion Bonded Epoxy Cast Iron

2

Disc

304 Stainless Steel or cast iron

3

Shaft

416 Stainless Steel

4

Pin

304 Stainless Steel

5

Seat

Phenolic backed cartridge style EPDM

6

Bushings

PTFE

7

Stem Orings

EPDM

10

Visual Indicator

Thermoplastic

11

End Stops

316 Stainless Steel

12

Actuator Ports

Anodized Aluminium

Size 50mm to 300mm
Body FBE coated Cast Iron
Seat EPDM
Disc 304 Stainless Steel
Pressure 10 BAR
Actuation Double Acting Pneumatic
