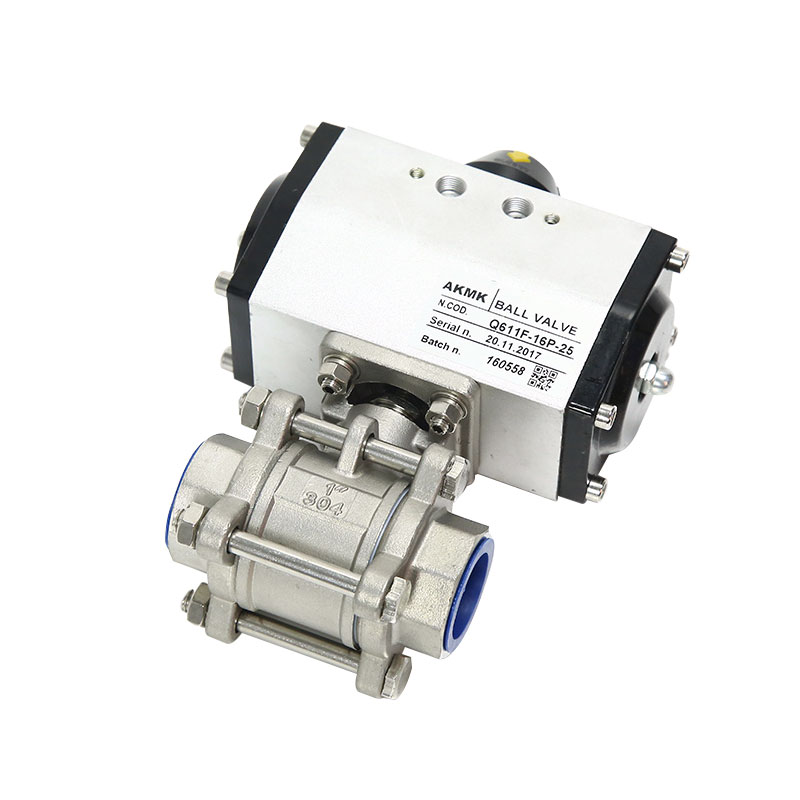

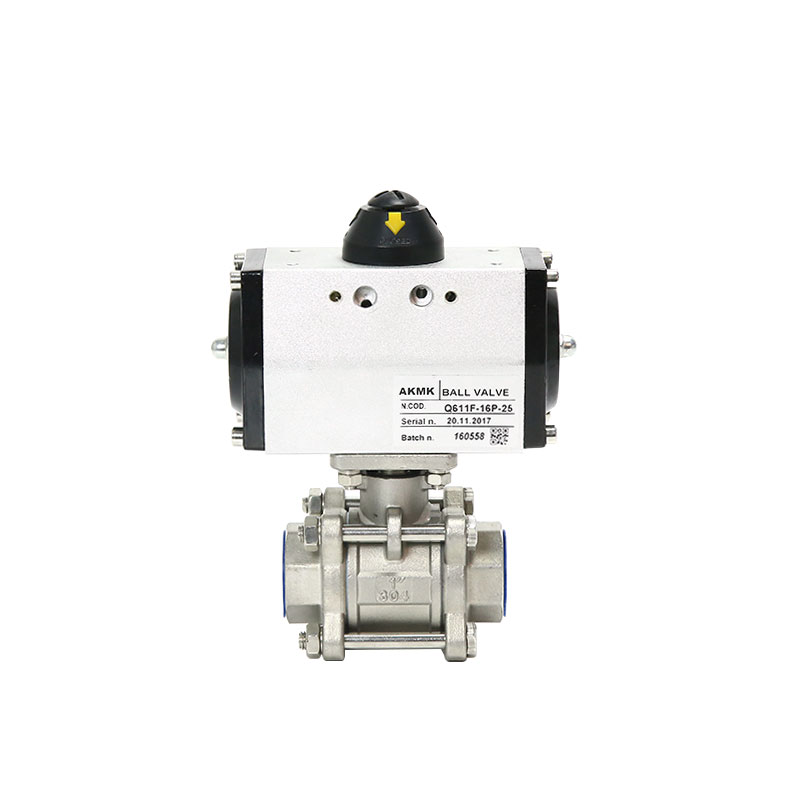

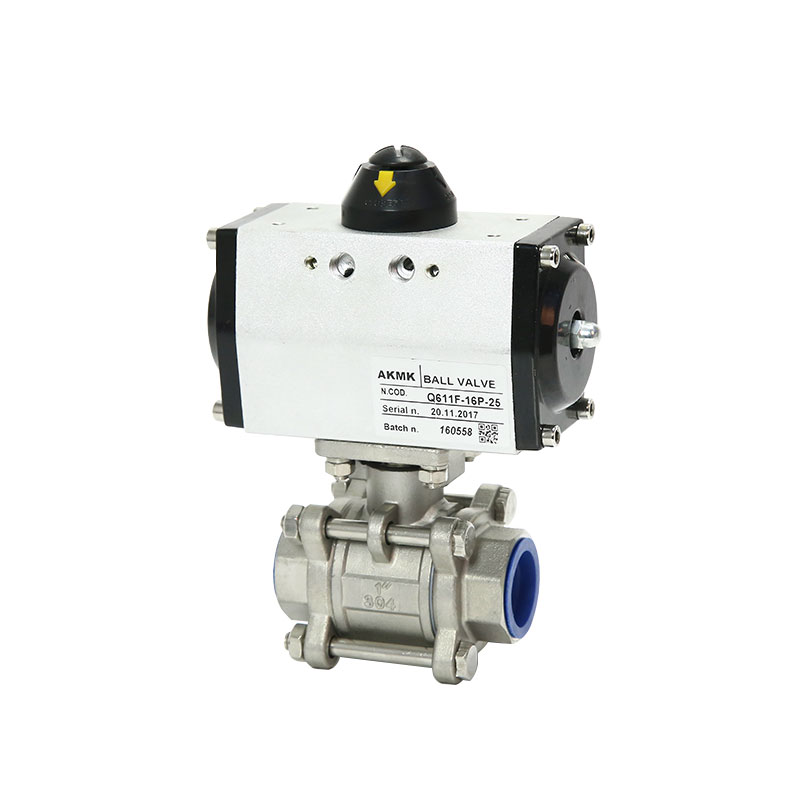

Three Piece Double Acting Pneumatic Threaded Ball Valve



Description

The advanced design of three piece ball valves allows for removing and servicing the center part of the valve containing the ball, stem, and seats without disconnecting the valve body from the line. Our fully encapsulated T316 stainless steel double acting pneumatic ball valves offer air-to-open, air-to-close configuration provides a maximum degree of automation for critical applications.



Features

Full port.

Working Pressure: 1000 PSI WOG.

Working Temp.: -4°F to 392°F.

Investment casting.

Blow-out proof stem.

Anti-static device.

Locking device.

Thread type: ASME B1.20.1 (NPT).

Actuator air supply pressure: 72.5 PSI.

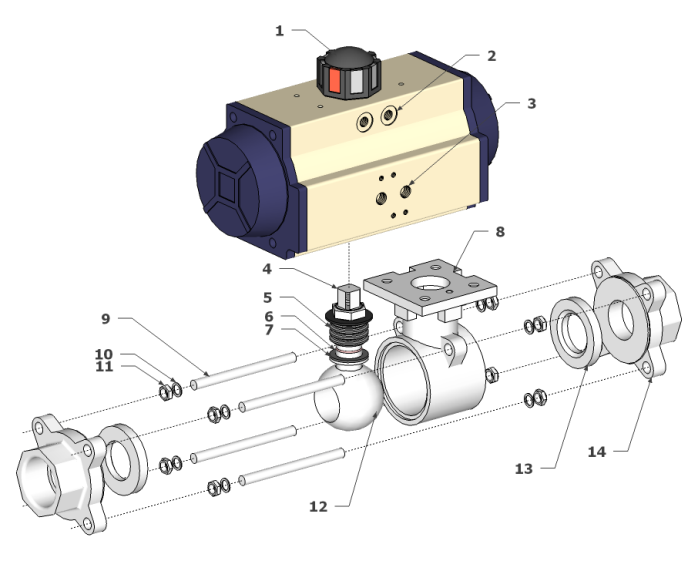

Item

Article

Material

1

Visual Indicator

UV Stabilised Thermoplastic

2

Adjustable Stops

Stainless Steel

3

Supply Ports

Threaded & Namur Interface

4

Drive

316 Stainless Steel

5

Chevron Seals

Reinforced Teflon

6

Backing O-ring

Viton

7

Thrust Washer

Reinforced Teflon

8

ISO Mounting Pad

316 Stainless Steel

9

Tie Rods

316 Stainless Steel

10

Washer

316 Stainless Steel

11

Nut

316 Stainless Steel

12

Ball

Polished 316 Stainless Steel

13

Seats

Reinforced Teflon

14

Body

316 Stainless Steel

Size 1/2" to 1 1/2" BSP
Body Nickel Plated Brass
Seat PTFE
Pressure 16 BAR
Temperature -10°C to 100°C
Actuation Double Acting Pneumatic
