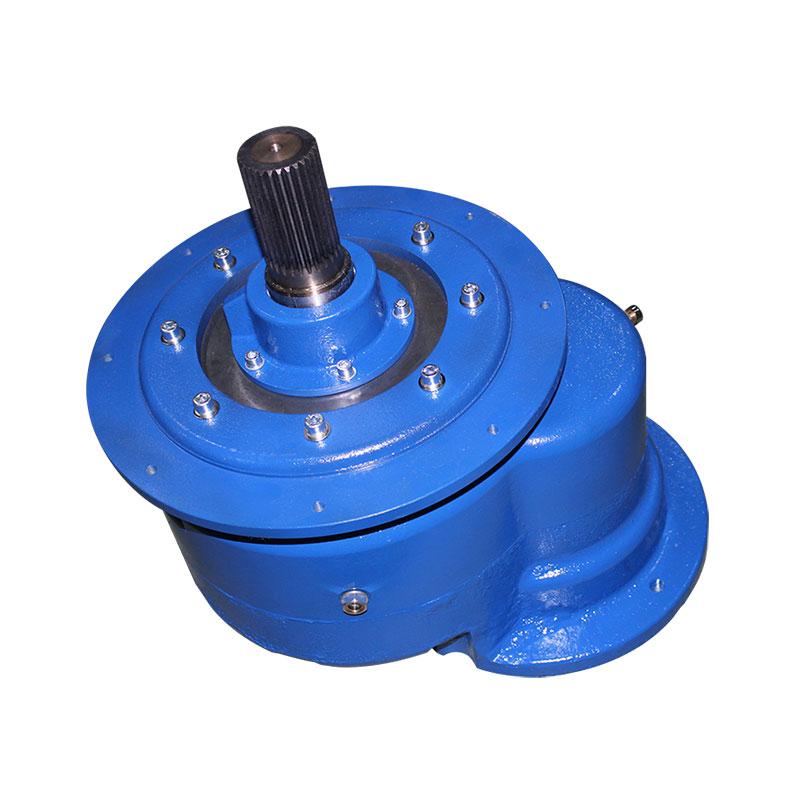

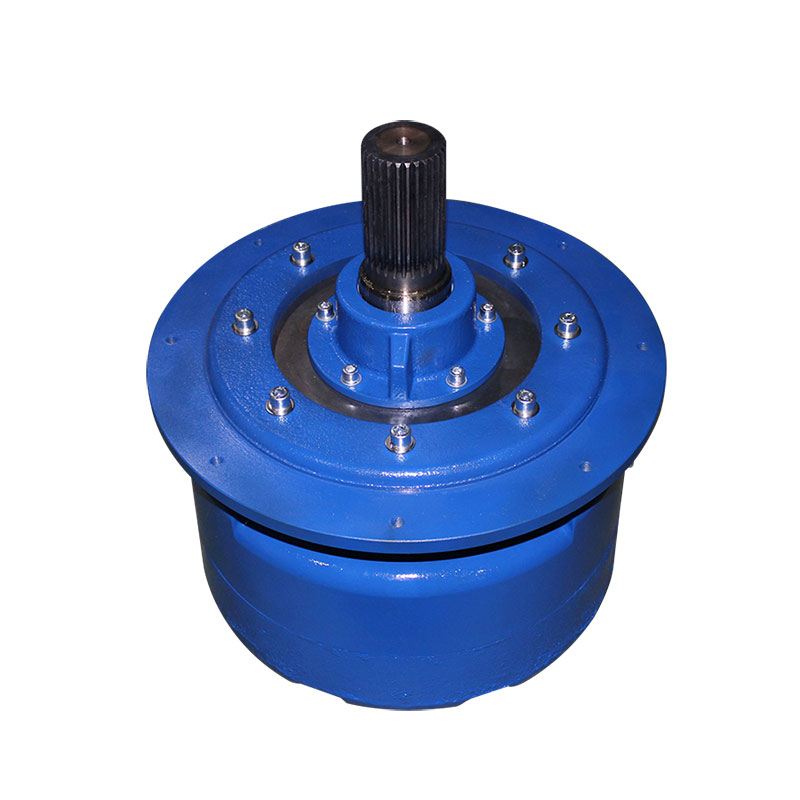

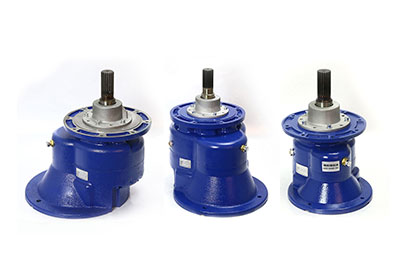

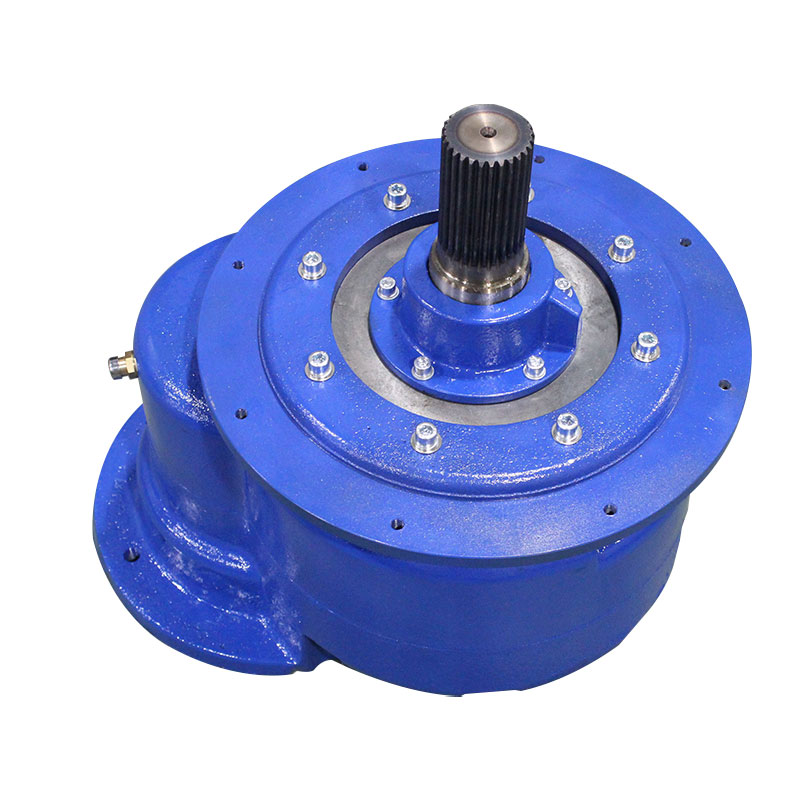

The reducer is a closed helical gear with a hollow input. The gear is directly mounted on the input shaft of the gear and is supported by the motor mounting frame mounted on the machine housing. No additional parts are required to transfer torque from the reducer to the equipment. . It can be installed in a vertical, horizontal or inclined position. The gear reducer mounted on the shaft usually has a reduction ratio of 5:1 to 10:1, and the output speed range is 1 to 300 rpm.
For example, lower installation costs
Compact size and eliminates centering requirements.
More suitable for bulk materials, grain and aggregate processing industries
DIN5482 involute spline output shaft
The motor end and the output end adopt flange mounting
